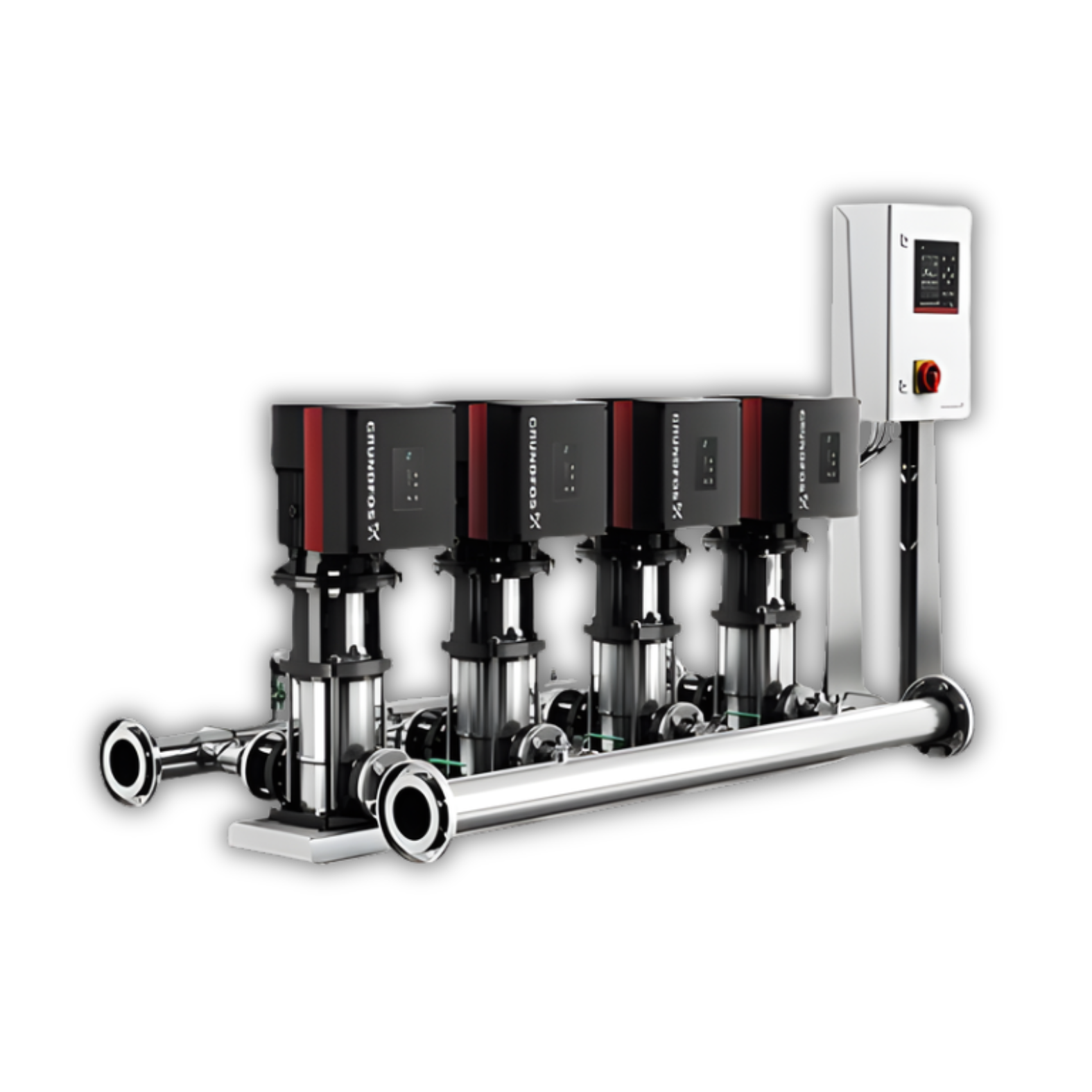

Advanced and energy efficient pressure boosting system for boosting of clean water. Available with 2-6 parallel connected pumps, Integrated advanced controller and all necessary fittings.
The application-optimised Hydro MPC pressure booster range
The Hydro MPC range is the premium offering in the Grundfos portfolio of Hydro pressure-boosting solutions. Hydro MPC booster sets offer superb pressure control, optimal energy efficiency, and are the premium choice for any job where constant pressure is a must.
A booster set from the Hydro MPC range is able to handle the operational challenges of any boosting application, and its easy set-up and connectivity makes it the preferred choice for complex systems in buildings, industrial processes and water utility installations.
Technical data
Flow rate max. 1460 m3/h
Head max. 155 m
Liquid temperature 0-60 °C
Operating pressure max. 16 bar
Applications
– Water supply systems
– Irrigation systems
– Industrial applications
– Commercial buildings
– High-rise buildings
Features and benefits
– 2-6 pumps in cascade
– Additional pilot pump
– Easy installation and startup
– Large user-friendly display
– Energy-optimised control
– Data communication
– Perfect constant pressure
– Application-optimised software
Options
– CIM add-on module for communication via LonWorks, PROFIBUS DP, Modbus RTU, 3G/4G cellular, GRM GiC 3G/4G, BACnet MS/TP, PROFINET, Modbus TCP, BACnet IP, Ethernet/IP, GRM IP
